ECO SOLAR 24
NO GENERATOR
OUR AWARD WINNING ECO SOLAR 24 PRODUCES ENOUGH SOLAR POWER TO POWER ALL ELECTRICAL OPERATIONS.
The Award Winning ECO SOLAR range is fitted with the SOLARFlowTM electrical system, which combines solar energy harvesting with an extremely energy-efficient electrical system to minimise energy use and emissions so effectively that we have been able to create a fully functional welfare cabin with no on-board generator at all.

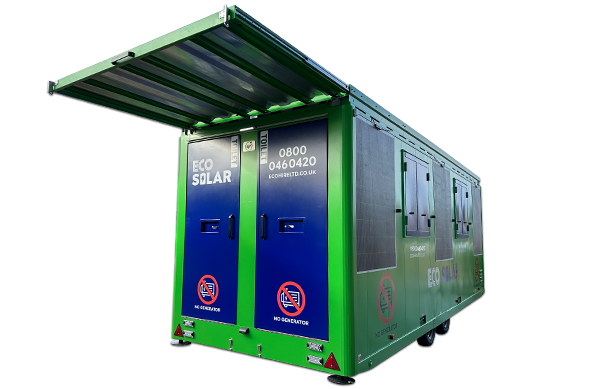

The ECO SOLAR 24 unit is fitted with a full roof of solar panels; vertical wall panels on the sides and front of the unit, plus an additional tray of further solar panels that extends from the rear of the unit when deployed. These capture the sun’s energy during daylight hours which is then either used immediately or stored in lithium ion batteries.
In an ECO SOLAR cabin, all electrical operations run off solar or battery power alone with zero requirement for a generator. The system is intuitive and easy-to-use – electricity is instantly available at all times with no need to press a button or start a generator.
FEATURES
- 13 person occupancy
- Separate 2-person office
- Twin female/male toilets
- Plus a dedicated drying room
- Fully solar electrical operation
- Summer months with no heater = zero emissions
- Winter months with heater = near zero emissions (heater uses just 0.25l of HVO biofuel per hour)
- Suitable for ULEZ and other low emission sites
- Easy to transport and deploys on site in less than a minute
- Simple to operate and user-friendly
ENVIRONMENTAL
- CO2 emissions cut by average 4938kg over a year.*
- Reduction in fuel use – saves approx. 1983 litres of fuel per year.*
- 100% silent operation
- Energy production and usage is tracked 24/7. We can produce reports for our customers giving full accountability for ESG scoring, sustainability reports and more
- Patented rain harvesting and grey water recycling
- Ultra efficient electrical system cuts energy wastage
- Real-time remote information on cabin location and tank levels means service visits can be planned precisely – no wasted trips or unnecessary downtime on cabins
Specification
| Unit Length | 6988mm |
| Unit Width | 2300mm |
| Unit Height | 2630mm |
| Towing Length | 8364mm |
| Towing Height | 2900mm |
| Internal Height | 1990mm |
| Internal Width | 2130mm |
| Net Weight | 3150kg |
| Toilet Freshwater Tank | 248 litres |
| Waste Tank | 327 litres |
| Fuel Tank | 43 litres |
Why EcoHire?
CARBON NEUTRAL OPERATIONS
Our entire ECOHire range has been designed to be carbon neutral in its operation.
100% RENEWABLE ENERGY
All energy sources on our ECOHire range are 100% renewable. From plant based energy – to solar panels.
ULTRA LOW WATER USAGE
A water harvesting/recycling system cuts water use and waste so ECOHire cabins need far less servicing.
SOLAR ENERGY
ECOHire products are fitted with solar panels to generate clean energy that is used to power the cabin with any surplus stored in a Lithium Ion battery.
NEAR ZERO EMISSIONS
Using clean solar energy backed up by a biofuel generator with exhaust filters, our ECOHire range emits virtually zero emissions into the atmosphere.
RAIN HARVESTING
Our rain harvesting system captures then sterilises rain water to use for sinks then recycles this waste water to flush the toilets.
NO FOSSIL FUELS
No fossil fuels are burnt when using an ECOHire cabin. No diesel, just clean, renewable energy.
98% ENERGY SAVING
With smart design and energy efficient processes, our cabins save 98% energy compared to an industry-standard welfare cabin.
97.2% RECYCLABLE
The ECOHire range boasts a ultra-durable stainless steel build and is near 100% recyclable. Impressive to say the least.
Standard features
- 16 x roof-mounted solar panels harvest energy during daylight hours
- Safe high-capacity Lithium Ion battery stores solar energy
- 24/7 remote monitoring of energy production and usage
- Female/male toilets – convenient and cater for onsite diversity
- Micro-flush fresh water toilets use minimal water
- Odourless waterless urinals
- SOLARTrack remote monitoring system reports 24/7 on energy production and consumption, generator runtimes, tank levels, location and more
- Low power air hand dryers – convenient and hygienic
- Air-blown heating system in Canteen, Office and Drying Room – no generator required
- Easy-to-clean wipe-down surfaces throughout
- Stainless steel food preparation surface in Canteen
- 2 x tables in Canteen for ease of access
- Canteen equipped with microwave and kettle
- 12 x USB charging points in Canteen
- Low power 3-pin sockets in Canteen and Office for printers, computers etc. with additional USB charging
- 12V PIR-sensor motion-controlled interior/exterior lighting - convenient, hygienic, energy-saving
- High security anti-vandal design with 3-point door lock system
- Sustainable stainless steel build with 97.2% recyclability
- On-tap hot running water in Canteen and WCs
to find out more give us a call on 0800 046 0420
ENVIRONMENTAL
PERFORMANCE
WITHOUT
COMPROMISE
Same high standards in welfare, without the environmental impact.
